Channeltape™ Utility Identification Sleeve
Protective sleeve that houses fiber lines with clear identification to discourage theft, accidental damage, and other liability issues for temporary above-ground installation periods.

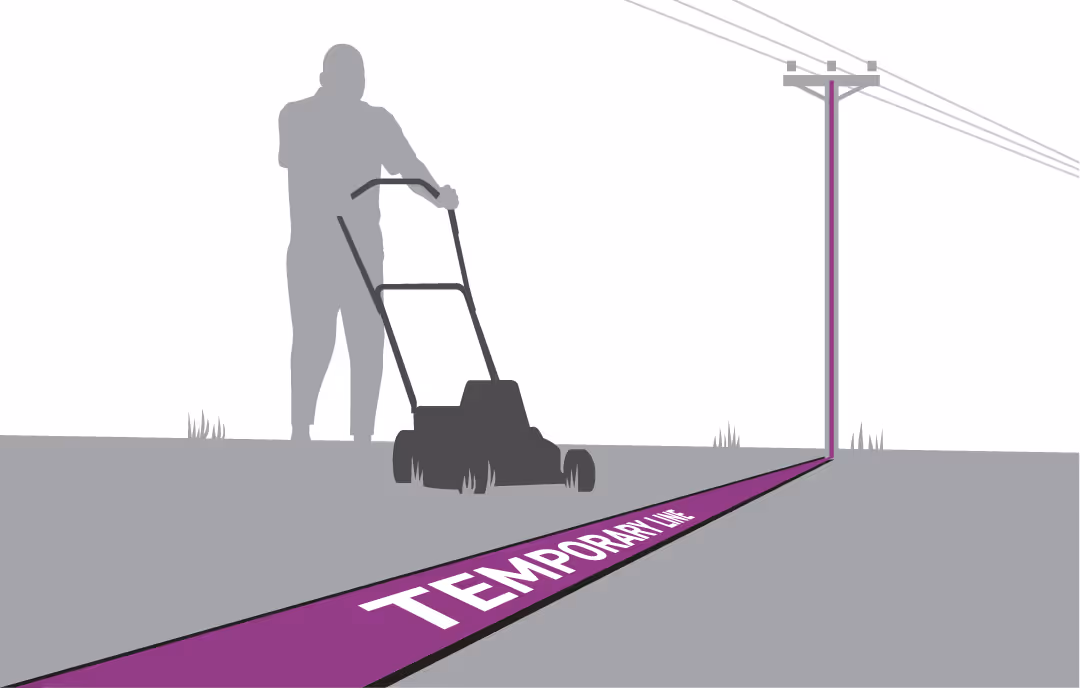

Channeltape™ features a hollow center channel that fiber can be threaded through during temporary above-ground installations. The product was designed to reduce vulnerability for lines temporarily laid on the ground before permanent underground burial.
Allows for temporary above-ground line identification that remains discrete while being highly visible to prevent accidental damage. Use of custom legends facilitate communicate in the field while deterring vandalism.
Theft and vandalism of communication lines pose serious threats to service reliability. These statistics from the NTCA Report Protecting the Nation's Critical Communications Infrastructure from Theft & Vandalism underscore the need for a clear identification solution.
Each material is carefully selected for its ability to provide discrete visibility for temporary lines.
.avif){kind=icon}
Above-ground (Temporary)
Underground (Permanent)
Film (Single Layer): 5 mil
Overall: 40 mil
Pull tape: 500 lbs
Overall: 6 inch
Pull Tape: 1/4 inch
Excellent resistance to acids.
Good resistance to alkalis.
Not attracted by mildew.
Excellent resistance to aging.
Supporting documents for the evaluation of Channeltape™ Utility Identification Sleeve. Contact us for additional information or guidance.
One pager detailing the key benefits of Channeltape™ Utility Identification Sleeve.
Third-party test report for ASTM D882-18 Tensile Properties of Thin Plastic Sheeting. This test was conducted by National Technical Systems (NTS).
Learn how Channeltape™ can be leveraged to maintain service continuity and elevate the overall customer experience.
Choose the right configuration for your project. Customizable options are available to match your utility type and identification requirements.
Not recommended for underground burial. Below ground use indicates electric lines.
Recommended for both aboveground and underground use. Below ground use indicates communication lines and conduit.
Not recommended for underground burial. Below ground use indicates oil and gaseous materials.
Not recommended for underground burial. Below ground use indicates sewer and drain lines.
Not recommended for underground burial. Below ground use indicates potable water.
Not recommended for underground burial. Below ground use indicates reclaimed water as well as user-defined utilities such as irrigation lines.
6"
14 AWG CCS Tracer Wire
The most popular detectable option for Channeltape™, offers a reliable balance of signal strength, flexibility, and cost for standard detection needs.
12 AWG CCS Tracer Wire
Provides higher conductivity and added durability for longer runs or applications requiring stronger signal transmission.
No Tracer Wire
Without opting to include tracer wire, Channeltape™ is nondetectable. This option is recommended for utilities that have success installing and maintaining other location methods.
Standard Legends
A standard legend is available with the message "Caution Temporary Service Fiber Optic No Copper" in black ink on red, orange, and yellow films and in white ink on green, blue, and purple films.
Customizable Legends
The digital printing process accommodates custom warning messages and full color-logos. This option is often selected to include an emergency contact number.
